Fully automatic new generation mobile tertiary crusher 200-300 t/h - Citrusdal

Mobile Tertiary crusher is the most important part of stone crushing and screening plants. These machines, which can be used as sand machine or secondary crusher according to the business needs, are produced in different capacities and presented to the taste of the customers.
All of our mobile anti-breaker types, produced with great care by our company, are specially designed in European Union standards.

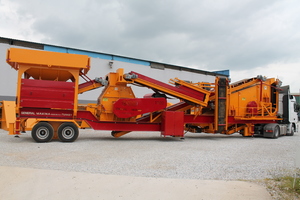

Tertiary crusher systems, which includes feeding system, tertiary crushing, vibrating screen and conveyor band systems all together in a single chassis, allow companies to save space, time and cost by performing many functions with one system. These superior facilities are ideal for construction, mining and stone quarry operations. It has all the features of a mobile work machine, such as installation in a short time, adaptation to flexible working fields, high performance work in tight spaces. In addition to all the features of the fixed sand machines, the G-MTK130 also offers the advantages of being mobile and is manufactured by our engineers in full compliance with CE standards
Mobile tertiary crushers are also called sand machines and dust machines at the same time. General Machinery, which is among the leaders of the sector, aims to provide the best service to its customers in mobile crushimng systems. These products, which are frequently used in sand screening plants, provide the highest performance expected in all kinds of fields.
MODEL
G-MTK130
CAPACITY
200 – 300 T/H
MAXIMUM FEED
150 mm
TOTAL ENGINE POWER
245 kW
ROTOR DIMENSION
Ø1300x1200 mm
GENERATOR POWER
600 kVA

→ G-MTK 130 is a combination of:
-Feeding Hopper (Grid and hydraulic piston)
-Tertiary Impact Crusher
-Vibrating Screen with 3 decks
-FOLD UP type Feeding, feedback and stock conveyors
-Fully AutoMation System
-Dust Removing System
-Hydraulic Mobile Chassis
-ElectriC Generator (Optional)

Main Features
→ G-MTK 130 is a mobile type & closed circuit crushing and screening plant known as also SAND MAKING MACHINE that is used for high percentage of cubical shape sand production purpose by processing soft and middle hard materials such as limestone, basalt etc.
→ G-MTK 130 includes one stage of crushing process that is made by a tertiary impact crusher which is capable to produce high percentage of sand with good cubical shape.

• Mobile chassis system 2-axis special construction chassis
• Hydraulic power system 125 liters
• There are 6 hydraulic foot mechanisms in the hydraulic system, which are reinforced with 6 fixed feet after being locked.
• Panel material is Siemens branded.
• Driving drums are rubber coated and threaded.
• Electric motors are inter, gamak and emtas brands.
• Conveyor belt tires are branded ovakent, derby and eksa.
• Bearings: SKF Brand.
• The flat product used is Eregli Iron Steel product and it is A1 grade
• Dust removing System and Automation System (Android software could can be manage the crusher system by tablet)

Certifications


Detailed Equipments

Name: FEEDING HOPPER
Brand: General Machinery
Original: TURKEY
Type: H10
Dimension: 10m3
Grizzly Grid
Hydraulic pistons provides Easy maintenance and cleaning
Has been made from 6mm coiled metal sheet St37

Name: TERTIARY IMPACT CRUSHER
Brand: General Machinery
Original: TURKEY
Type: TK 130
Rotor size: 1300x8000 mm
Feeding mouth: 0-120 mm
Body: St-37 A1 Grade Metal Sheet
Motor Power: 250 Kw
Max Rotor Speed: 916 rpm
Hammer: 8 pcs
The body is opened and closed with 4 hydraulic pistons for easy maintenance.
Rotor is made of 70 mm sheet metal and heat treated rotor protector is available.
Special hard fill material is applied to the spilled parts of the rotor to prevent erosion.
Crushers with a high ratio of shrinkage and cubic material.
MIL 4140 is Cr-Ni-Mo alloy forged steel.
Bearings SKF- FAG-KG-NACHI and intervening brands are used

Name: HIGH STROKE TYPE VIBRATING SCREEN
Brand: General Machinery
Original: TURKEY
Type: TE1645x3
Dimension: 1600 x 4500 mm3 floors
Motor Power: 18,5 Kw
The front shot is slid and the change maintenance.
Sieves are pulled from European spring steel wire rod.
The bearings used in the screens are Skf. Steel cage type, shaft C 4140 steel.
Sieve inclination angle is 18 degrees.
12 specially produced steel springs are used.
Three-way walkways have maintenance platforms.
The shaft is housed in a steel cage, has a longer life and is made of 4140 materials
The bearings have labyrinth cover and grease lubrication including welded steel construction fixed frame and engine blinds.
There is a smasher in the pouring area of the material where the material is poured from the conveyor belt.

Name: CONVEYOR BELT SYSTEM
Brand: General Machinery
Original: TURKEY

• Under-screen stock conveyor 600 mm folding type
• Stock conveyor 2 x 600 mm folding type
• Return collecting conveyor 1600 mm
• Return conveyor 2600 mm
• Conveyor belt system was protected with emergency stop
• High quality Polat reductor
• Belts are 4 layer double stick.

Packaging
Size: 14000 (L) * 3000 (W) * 4300 (H) mm
Weight:45 T
